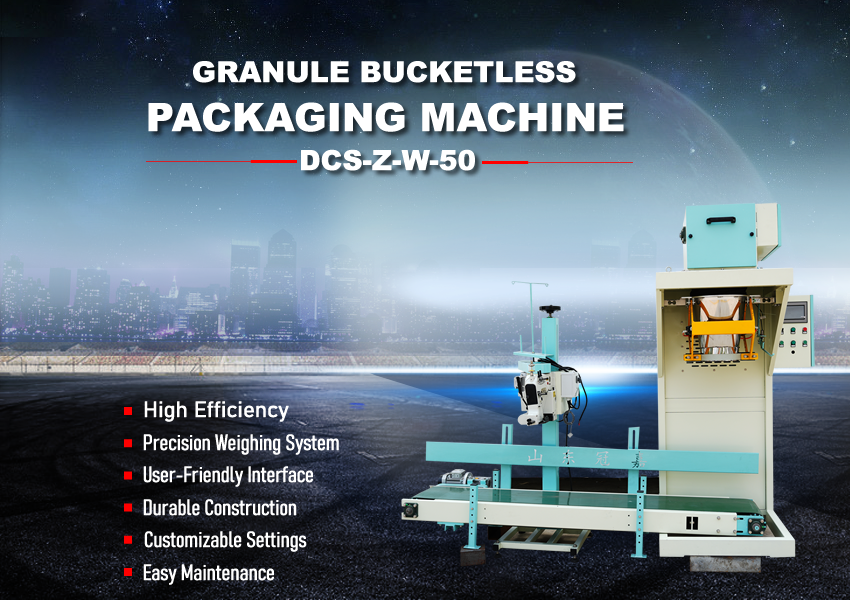

Granule bucketless packaging machine DCS-Z-W-50
Classification
Detailed introduction
Functional features:
The machine only need manual assistance on the bag, automatic weighing, automatic conveying, sewing bag;
Adopt gravity feeding mode and ensure feeding speed and accuracy through instrument control;
Solve some special chemical raw material packaging problems, wide application range, simple operation;
High precision sensor, high intelligent weighing controller, high measurement accuracy, stable performance;
The contact part with the material is made of stainless steel, with high corrosion resistance;
Electrical and pneumatic components are imported components, long service life, high stability;
The control cabinet adopts a sealed form, which is suitable for harsh dust environment;
Automatic correction of material deviation, automatic zero tracking, overshoot detection and suppression, over and under alarm;
Optional automatic sewing bag breakage function: photoelectric induction automatic sewing bag after pneumatic cutting line, saving labor.
Technical parameters:
| Model specifications | DCS-Z-W-50 | Equipment height | 2100mm |
| Weighing range | 10-50kg | Power | AC380V 50Hz |
| Division value | 10g | Power | 1.3kw |
| Weighing accuracy | 0.2%F、S | Air pressure | 0.4-0.8Mpa |
| Weighing speed | 200-300bag/h | Air consumption | 1m3/h |
