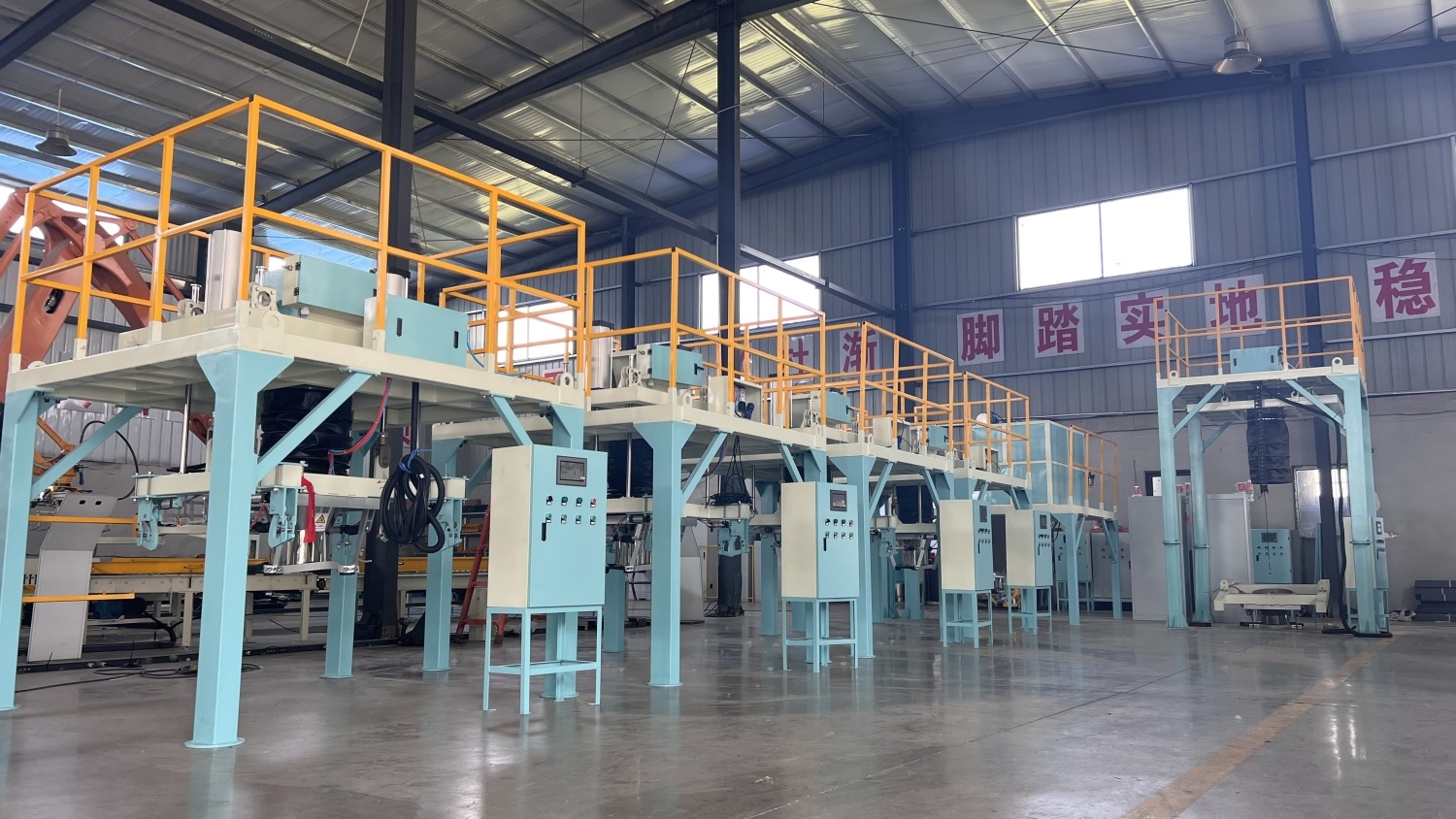

Ton Bag Scale DCS-T-1000
Classification
Detailed introduction
Granules, powders and mixed materials, different feeding methods can be used for different materials.
It integrates coarse and fine feeding functions into one body, effectively solving the requirements for speed and accuracy in the packaging process.
Packaging bags of different weights can be automatically peeled and cleared during the packaging process.
The automatic data correction function ensures accuracy requirements.
When it is required to detect whether the materials contain metal particles, a metal detector can be installed at the feed port.
After the packaging bags fall automatically, they can be transported to the next process by free rollers, powered rollers or belt conveyors.
According to requirements, it can be equipped with a bag shaking function or the height of the bag machine and hook can be flexibly adjusted.
The system's two operating modes, automatic and manual, can be switched at will.
Technical parameters:
| Model specifications | DCS-DN-T-1000 | Equipment height | 3500mm |
| Weighing range | 500-2000kg | Power | AC380V 50Hz |
| Sensing form | Top mounted sensor | Power | 3.7kw |
| Weighing accuracy | 0.1%F、S | Air pressure | 0.5-0.7Mpa |
| Weighing speed | 10-30bag/h | Air consumption | 9m3/h |
